2828C RMC
- The engine is 7200 cc OM926 producing power of 210Kw(280hp) @ 2200 rpm and a maximum torque 1100 Nm @ 1200-1600 rpm.
- The engine is coupled with G131,9 speed (9F +1R), with cable shift gearbox offering superior Gear change.
- The wheelbase of 4575 mm.
- Air Brakes with ABS, Exhaust Brakes and Engine Brakes offer superior safety and Parabolic Leaf Spring and Luxury Cabin offers fatigue free driving.
- Unitized FIP enhance better fuel mileage.
-
Technical Specification

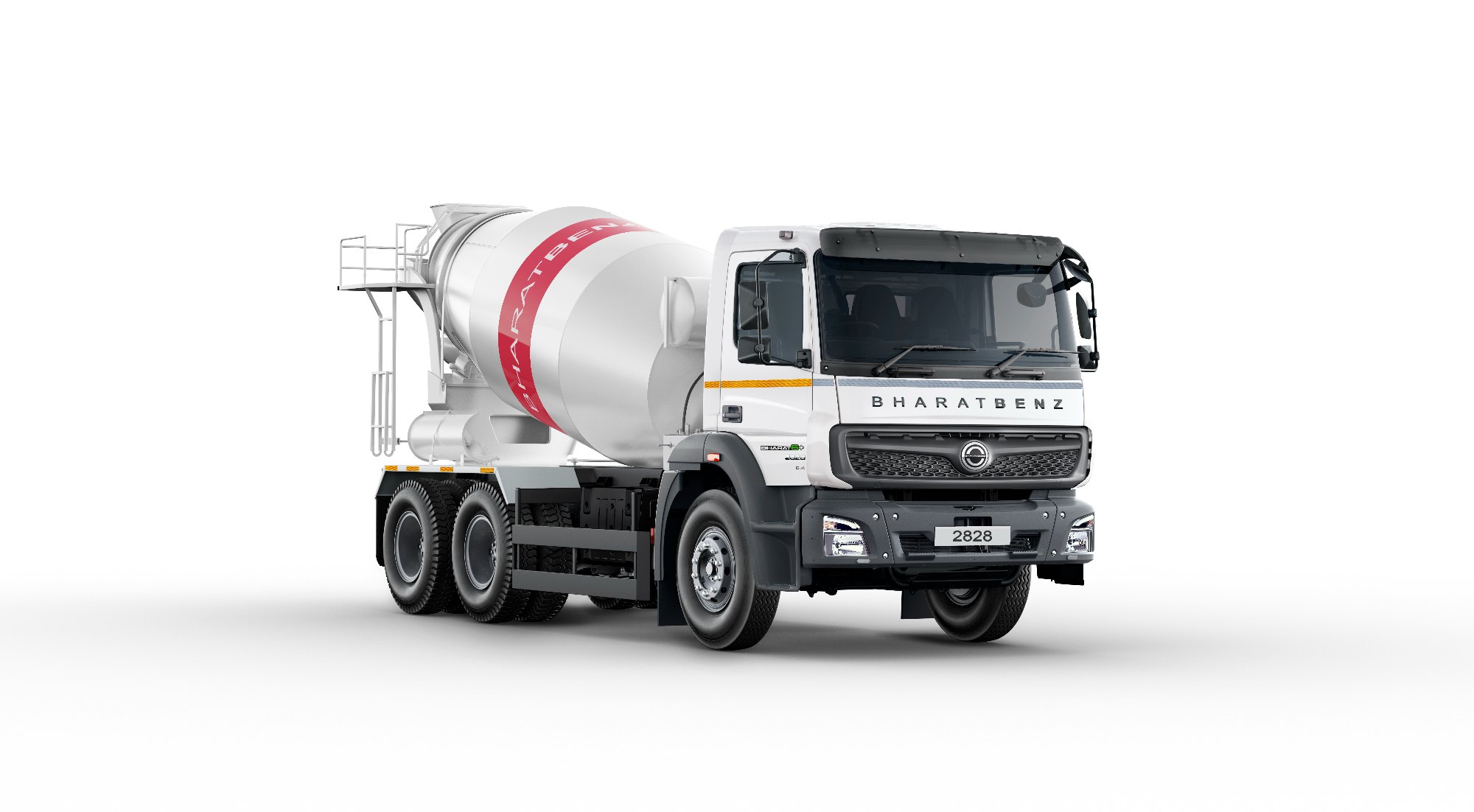

BharatBenz 2828C RMC is a vehicle with a gross vehicle weight of 28000 kg. The engine powering this BharatBenz tipper is 7200 cc OM926 producing 280 HP of power and 1100 Nm of maximum torque. The engine of the BharatBenz 2832C RMC is coupled with a 9-speed manual (9F+1R), with G131 gearbox offering superior mileage. This BharatBenz 2828C RMC comes in a 6x4 axle configuration. Air Brake and Engine Brake offer superior safety in BharatBenz 2828C RMC and parabolic type leaf springs, with 2 hydraulic shock absorbers suspension in front offers good ride quality.
DimensionWheel Base 4575 Overall Length 9475 Overall Width 2600 Overall Height 3830 Front Overhang 1485 Rear Overhang 2740 Minimum ground Clearance 290 WeightGross Vehicle Weight (GVW) 28,000 kg EngineModel OM926 Maximum Power 210 kW (280hp) @ 2200 RPM Maximum Torque 1100 Nm @ 1200 – 1600 rpm No. of cylinders, Displacement 6 Nos., 7200 cc Emission Standard Bharat Stage BSVI – OBD-2 GearBoxGearbox Model & Type G131, 9F + 1R, Mechanical, Synchromesh Gears Clutch Type, Diameter Single dry plate, Hydraulic control with clutch booster, 430 mm AxleFront Axle Model, Type IF 7.0 Rear Axle Model, Type IRT 390-11 with Single Reduction with Diff Lock Differential Ratio 5.375 Chassis Frame & SuspensionChassis Type Channel Section with cross member Depth x Flange Width x Thickness 288 mm x 70 mm x 9 mm Front Suspension Parabolic type lead spring with 2 hydraulic shock absorbers Rear Suspension Bogie Suspension Anti-roll Bar In Front & Rear Brakes & TyreService Brake Pneumatic, Foot Operated, Dual Line with ABS Parking Brake Pneumatically Operated Hand Control Valve Tyre 295/90/R20 Steering & CabinSteering Type Hydraulic Power Assisted Cabin Extended Day Cabin, Tiltable Fuel Tank & ElectricalsF.I.P. Unitized Fuel Tank 280 liters Adblue Tank 60 liters Voltage 24 V Electrical System Battery Capacity 2 x 12V, 120 Ah PerformanceMaximum Gradeability 60% Maximum Grade Speed 60 km/h Minimum Turning Circle Diameter 16.12 m -
